Artificial Turf Shock & Drainage Pads — 100% Recycled XPE

Factory-direct 100% recycled XPE drainage & shock pads for artificial turf. 20/30/40mm, 2290×940mm, interlocking. Free 18×18 cm samples. FOB quote within 24h. Performance data subject to testing.

Request Free Sample Get a Free Quote View Products
3
Thickness Options
2
Edge Options
100%
Recycled XPE

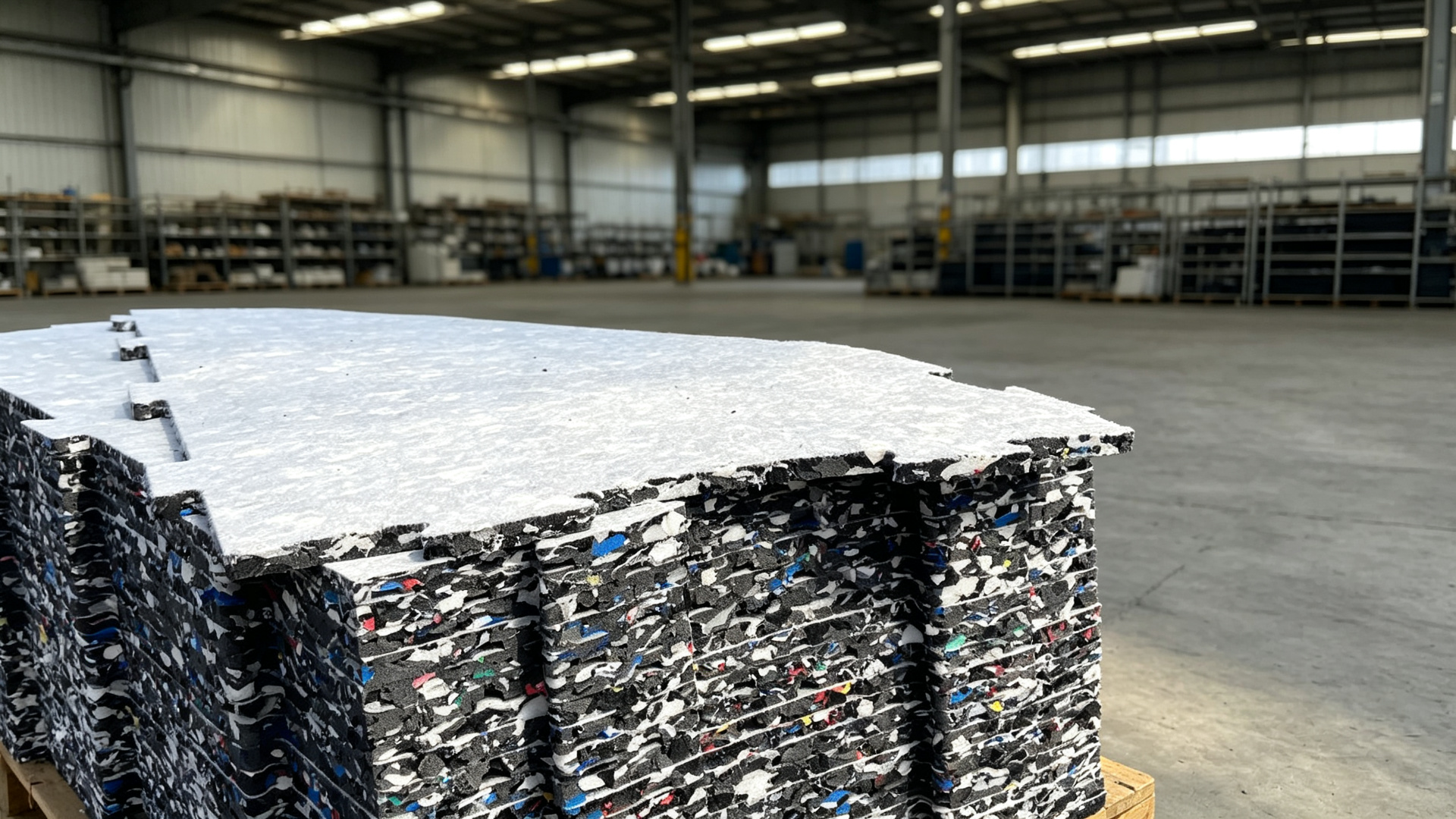

Recycled XPE shock and drainage pads stacked at our warehouse
✓ 100% Recycled XPE ✓ US Standard Sizes ✓ FOB Quote in 24h ✓ Free 18×18 cm Samples ✓ Sample First ✓ No Installation Adhesive
Artificial Turfsurface
EcoDrain Padshock + drainage
Drainage Layervertical flow
Basefoundation
100%Recycled XPE
FOBNingbo, direct from factory
Free18×18 cm sample, freight collect
24hquotation response
MOQ500 m²

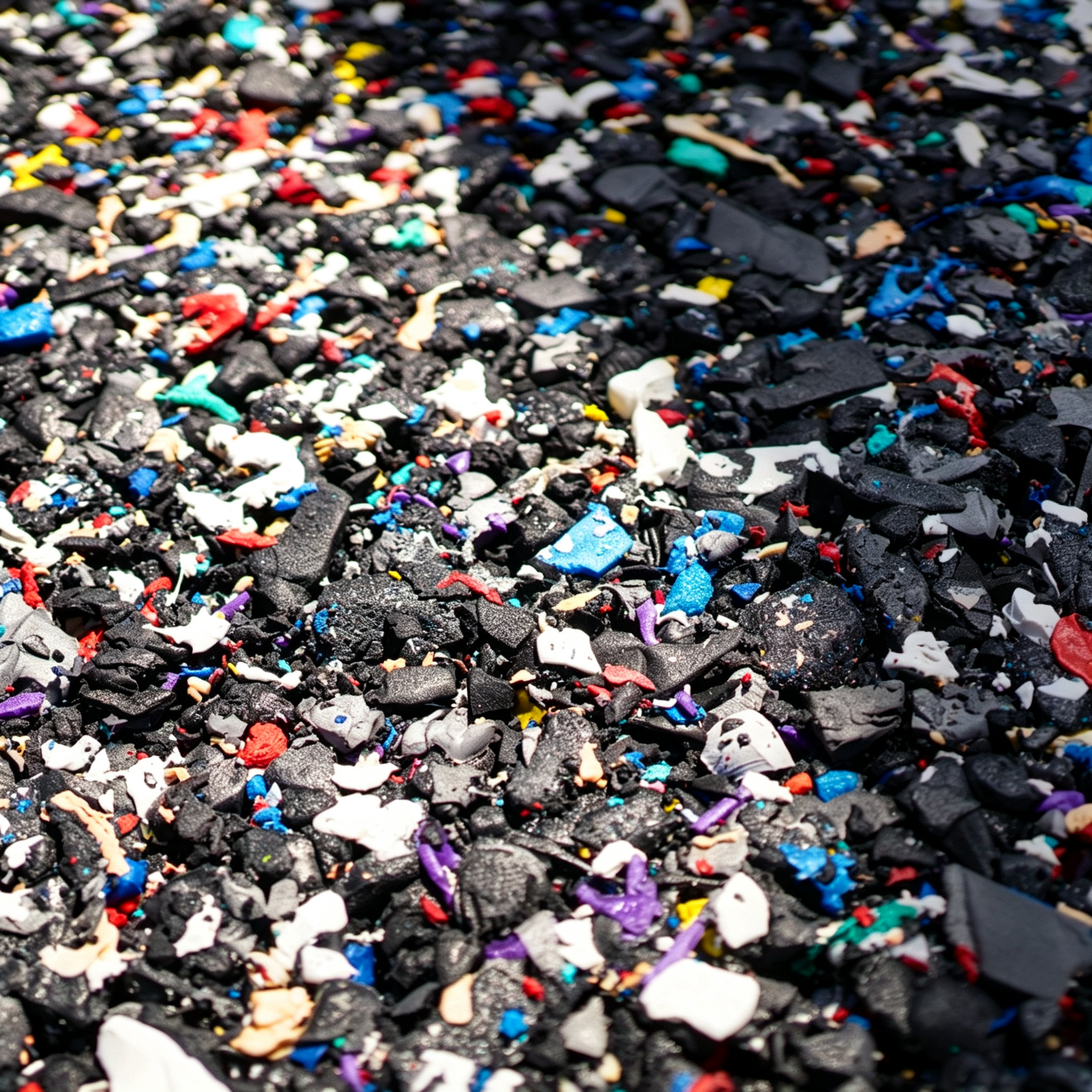

Recycled XPE scrap material close-up

100% Recycled XPE Base

Our shock pads are made from recycled XPE with a melt-bonded continuous base and formed drainage channels, designed for drainage and shock absorption under artificial turf.

Melt-bonded, no solvent glues. Recyclable materials. Performance data subject to testing.

Clean XPE production scrap
Melt-bonded, no solvent glues
Formed drainage channels
Consistent density

Product Series

Thickness options of 20, 30 and 40 mm. The final choice depends on project requirements and, where applicable, testing of the complete turf system.

EcoDrain 20
Landscape & Light Use
  • Thickness20 mm
  • Density90 kg/m³
  • Shock AbsorptionTypical (under testing)
  • Drainage RateTypical (under testing)
  • ApplicationLandscaping, gardens, rooftops, pet areas
On requestFOB Ningbo · reply in 24h
Request Quote
30 mm option
EcoDrain 30
General & Multi-Sport Projects
  • Thickness30 mm
  • Density105 kg/m³
  • Shock AbsorptionTypical (under testing)
  • Drainage RateTypical (under testing)
  • ApplicationTurf and multi-sport projects, subject to system design and testing
On requestFOB Ningbo · reply in 24h
Request Quote
EcoDrain 40
Project-Specific 40 mm
  • Thickness40 mm
  • Density120 kg/m³
  • Shock AbsorptionTypical (under testing)
  • Drainage RateTypical (under testing)
  • ApplicationProjects specifying 40 mm; confirm requirements against the complete turf system
On requestFOB Ningbo · reply in 24h
Request Quote

🧩 Interlocking Puzzle Edge

Profiled puzzle-style edges are designed for mechanical connection without adhesive. Confirm the profile, fit and installation method with samples and the project specification.

Overall size (with tabs):2290 × 940 mm
Effective coverage:2250 × 900 mm
Coverage per sheet:2.025 m²
Sheets per pallet:42 pcs
Coverage per pallet:85.05 m²

📏 Straight Edge (No Interlock)

Plain straight-cut edges for custom layouts, small areas, and projects requiring edge-to-edge butting. Easy to cut and trim on site.

Sheet size:2290 × 940 mm
Coverage per sheet:2.15 m²
Sheets per pallet:42 pcs
Coverage per pallet:~90.3 m²
Custom sizes:On request

Standard Dimensions & Specifications

US standard sheet sizes for a wide range of turf projects.

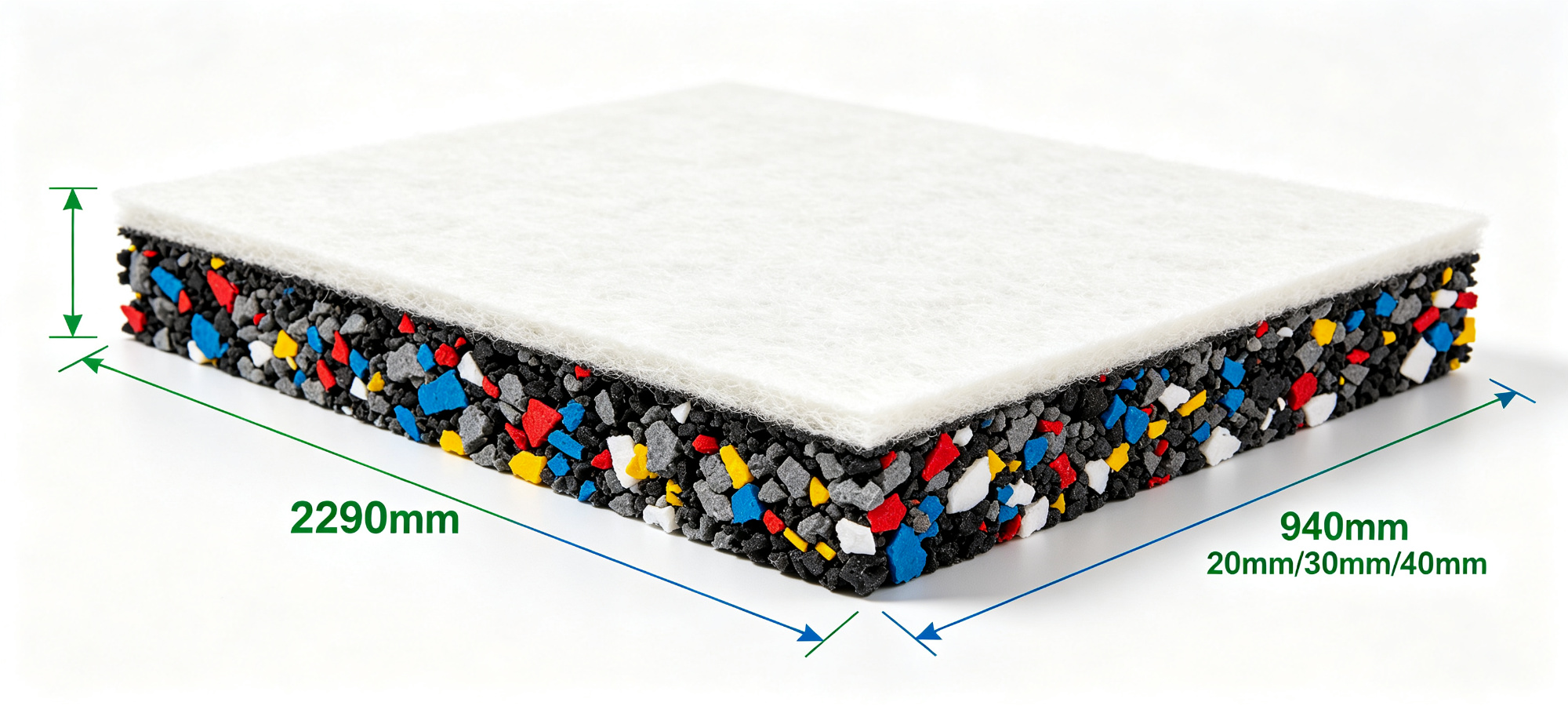

Standard sheet dimensions 2290mm x 940mm
Parameter EcoDrain 20 EcoDrain 30 EcoDrain 40
Material100% Recycled XPE Base
Thickness20 mm30 mm40 mm
Density90 kg/m³105 kg/m³120 kg/m³
Interlock Sheet (overall)2290 × 940 mm
Interlock Effective Coverage2250 × 900 mm (2.025 m²/sheet)
Straight Edge Sheet2290 × 940 mm (2.15 m²/sheet)
Sheets per Pallet42 pcs
Coverage per Pallet (interlock)85.05 m²
Shock AbsorptionTypical (under testing)Typical (under testing)Typical (under testing)
Vertical DeformationTypical (under testing)Typical (under testing)Typical (under testing)
Drainage CapacityTypical (under testing)Typical (under testing)Typical (under testing)
Tensile StrengthTypical (under testing)Typical (under testing)Typical (under testing)
Elongation at BreakTypical (under testing)Typical (under testing)Typical (under testing)
Operating TempTypical (under testing)
Lifespan (under turf)Typical (under testing)Typical (under testing)Typical (under testing)

Key Advantages

Why contractors and project owners choose EcoDrain shock pads.

💧

Drainage

Engineered drainage channels move water through the pad under the turf. Field playability after rain subject to site conditions and testing.

🛡️

Shock Absorption

Designed as an under-turf impact layer. Absorption values subject to testing.

♻️

100% Recycled Material

Made from recycled XPE scrap. Recyclable materials. Certification status under review.

⏱️

Extends Turf Life

Even load distribution reduces wear on turf backing and fibers. Longevity improvement subject to testing.

🔧

Fast & Easy Installation

Lightweight interlocking sheets install quickly with basic tools. No adhesive required.

💰

Cost Effective

Factory direct pricing from China. Lower total cost vs. virgin foam or rubber crumb systems.

Sample First, Then Decide

See the pad before you commit. Four simple steps.

01

Tell us about your project

Share the turf area, thickness and country. We reply within 24 hours.

02

Get a free 18×18 cm sample

We send a sample from the same batch. You cover only the courier.

03

Check it yourself

Feel density and drainage. Interlock compatibility should be checked on the sample before mixing.

04

Confirm price & production

We confirm a firm timeline with the quotation, then a 30% deposit starts production.

Request Your Free Sample

Built from Recycled XPE, Ready to Install

Recycled XPE shock & drainage pads, interlocking panels, factory-direct from Zhejiang. Performance data subject to testing. Free 18×18 cm sample first.

100%Recycled XPE
20/30/40mm thickness
2290×940mm panels

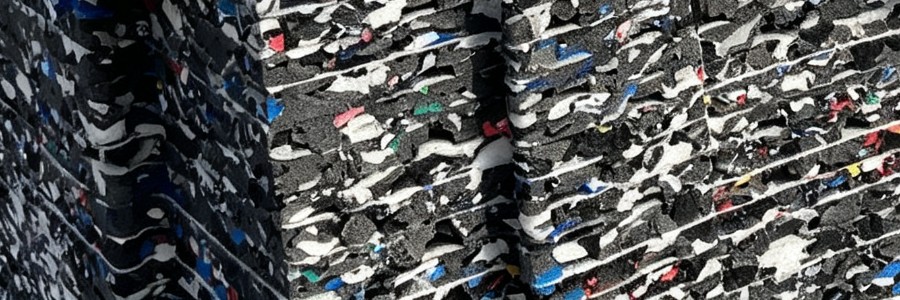

Recycled XPE pad detail

Applications

Starting points for project discussion. Site conditions and whole-system requirements determine the final specification.

⚽

Sports Fields

Football, rugby, hockey, multi-sport courts and training areas — subject to project specification.

🏘️

Landscaping

Residential gardens, commercial landscapes, rooftops, pet areas

🥅

Community Sports

Community, club and municipal turf areas — subject to project specification.

🏟️

Specialized

Other turf areas to discuss with our team, including golf tees, batting cages, equestrian walkways and event flooring.

Frequently Asked Questions

Common questions from contractors and distributors about our shock pads.

Our standard MOQ is 500 m² per specification. LCL trial orders can be arranged for first-time buyers — please contact us for details.
Yes. Our standard 2290×940mm overall / 2250×900mm effective interlocking size. Interlock compatibility with other brands should be verified on a sample before mixing.
Yes, we provide free 18×18 cm sample swatches. You only cover the courier cost (DHL/FedEx), which is quoted before dispatch. Full-size sample sheets are available at cost.
We start with a free 18×18 cm sample. Production lead time and shipping are confirmed in writing with your order — we'll send a firm timeline with the quotation.
Yes. Custom thickness, density and sheet dimensions are available on request. Standard sizes are 20/30/40mm in 2290×940mm — contact us with your specifications.
We accept T/T bank transfer (30% deposit, 70% against B/L copy), L/C at sight for large orders, and Western Union for sample fees. Trade Assurance via Alibaba is also available.

About Yili EcoDrain

Yili EcoDrain is a brand of Sanmen County Baimulin Building Materials Store, specializing in recycled XPE foam underlay products for artificial turf systems from Sanmen, Taizhou, Zhejiang, China — close to Ningbo Port for efficient export.

We produce our EcoDrain series from 100% recycled XPE scrap, melt-bonded into a continuous base with formed drainage channels. Standard US sheet size is 2290×940mm.

We export worldwide with factory direct pricing, fast lead times, and consistent quality control for every shipment.

Factory Direct US Standard Sizes Global Export Strict QC Ningbo Port
100%Recycled XPE Material
20/30/40mm thickness
SampleFirst
24hQuote Response

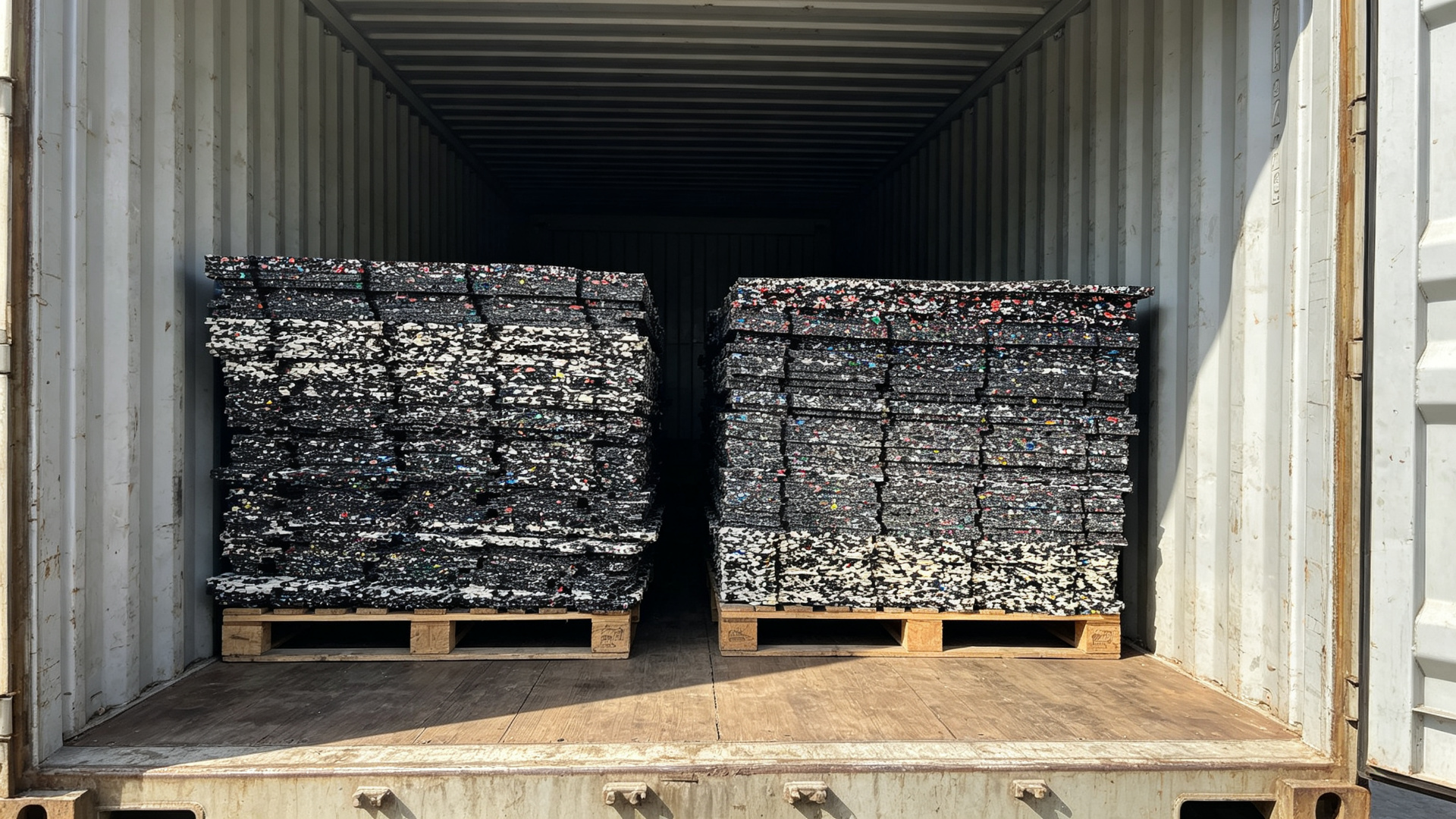

Recycled XPE material loaded in container for export

Palletized loading for export — 42 sheets per pallet, 85.05 m² coverage per pallet

Ready to verify the pad?

Request a free 18×18 cm sample and compare density, drainage and lock edge for yourself.

Request Free Sample Get a Quote

Get a Free Quote

Tell us about your project and we'll get back to you within 24 hours with a competitive FOB Ningbo quotation.
